High Performance - HP
The HP Product Family is more versatile than any media in its class. It can fit more applications than any other comparable media. Backed with the finest grades of polyester spunbond and then laminated with a proprietary Flexi-Tex ePTFE membrane, our HP products are not only strong and durable but carry the highest efficiency and lowest pressure drop than any competitor. This translates to longer filter life and quality air. All HP products come with a full line of 3rd party testing data that certifies what is stated in the technical data.
HP500-130
HP500 is an H13 efficiency that puts it in a class of its own. The proprietary HEPA grade ePTFE membrane is Thermal-Bonded to a 130-gsm Bi-Component Polyester Spunbond base. The membrane is laminated to the substrate without solvents, chemicals, or binders. This process eliminates the risk of contamination and leach out during the filtration process. The, unique to IAM, the Membrane will not rupture or break during the pleating process like typical membranes. Applications that require high efficiency, HEPA grade media with low pressure drop, such as vacuum systems, pharmaceuticals and clean rooms, will have the added advantage of a durable chemical resistant media.
APPLICATIONS
- Vacuum Systems
- Pharmaceuticals
- Clean Rooms
- Electronics
- Chemical Filtration
- Biological Filtration
- Hazardous Material Collection
- Radioactive Particles
- Hospitals
- Food Processing
- Laboratories
HP300-AL
HP300-AL has an aluminum anti-static coating is sandwiched between a proprietary HEPA grade ePTFE membrane and then Thermally-Bonded to a 100% synthetic base through a proprietary process. An aluminum, anti-static coating is added to this Bi-Component Polyester which maintains a neutral charge that will minimize negative ion and electro-static buildup on the filter element. This E11 HEPA membrane is formed without solvents, chemicals or binders. The unique Relaxed Membrane is bonded to the up-flow side, that makes this media a one-of-a-kind in the filtration industry. The bonding process is engineered so the membrane and aluminum coating will not rupture or break down during the pleating process.
APPLICATIONS

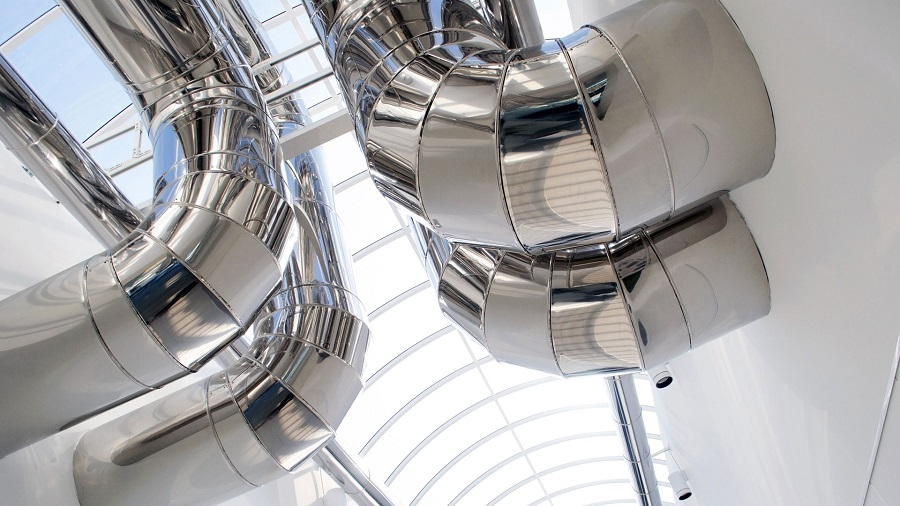

- Industrial Air Filtration
- Welding (Laser, Plasma)
- Stainless Steel Welding
- Pharmaceuticals
- Plating
- Food Processing
- Powder Coating
- Cement
HP300
A proprietary HEPA grade ePTFE membrane is Thermal-Bonded to the 100% synthetic base through a proprietary process that forms a permanently bonded membrane without using solvents, chemicals, or binders. This process eliminates the risk of contamination and leach out during the filtration process. The unique Relaxed Membrane will not rupture or break during the pleating process like typical membranes. High efficiency and up to 40% lower pressure drop make this media the only choice for heavy, industrial filtration applications.
APPLICATIONS
- Industrial Air Filtration
- Welding (Stainless Steel, Plasma)
- Plasma Cutting
- Pharmaceuticals
- Plating
- Food Processing
- Powder Coating
- Cement
- Metalizing
HP300-CB
HP 300-CB has a Carbon Black coating sandwiched between a proprietary HEPA grade ePTFE membrane and then Thermally-Bonded to a 100% synthetic base through a proprietary process. This E11 HEPA membrane is formed without solvents, chemicals or binders. The unique Relaxed Membrane is bonded to the up-flow side that makes this media a one-of-a-kind in the filtration industry. The bonding process is engineered so the membrane and CB coating will not rupture or break down during the pleating process.
APPLICATIONS
- Industrial Air Filtration
- Magnesium Processing & Cutting
- Stainless Steel Welding & Cutting
- Aluminum Cutting
- Food Processing
- Pharmaceuticals
- Laser Cutting
- Coal
HP300-FR
HP300-FR has a Fire Retardant coating applied to the proprietary HEPA grade ePTFE membrane and is Thermally-Bonded to a 100% synthetic base through a proprietary process that forms a permanently bonded membrane without using solvents, chemicals, or binders. This process eliminates the risk of contamination and leaching during the filtration process. The unique Relaxed Membrane will not rupture or break during the pleating process like typical membranes. When extra protection against fires is a priority, the HP300-FR is the only choice where heavy sparks are generated and there is a risk of fire.
- Industrial Air Filtration
- Welding (Laser, Plasma)
- Stainless Steel Welding
- Pharmaceuticals
- Plating
- Food Processing
- Powder Coating
- Cement
